Specifications
| Place of Origin | China |
| Main Color | Matte Black |
| Main Material | Tempered Glass+Sheet Metal+Plastic |
| Filler | Stainless Steel |
Dimensions & Weights
| Assembled Length (in.) | 60.00 |
| Assembled Width (in.) | 76.00 |
| Assembled Height (in.) | 0.40 |
| Weight (lbs) | 183.00 |
Product Features
- Recommended Installation Width: 56 to 60 inches. The overall length can be adjusted by changing the insertion depth of the wall brackets and guide rail. For a 60-inch opening, the middle overlap area after installation is 4 inches wide, including the door seal width.

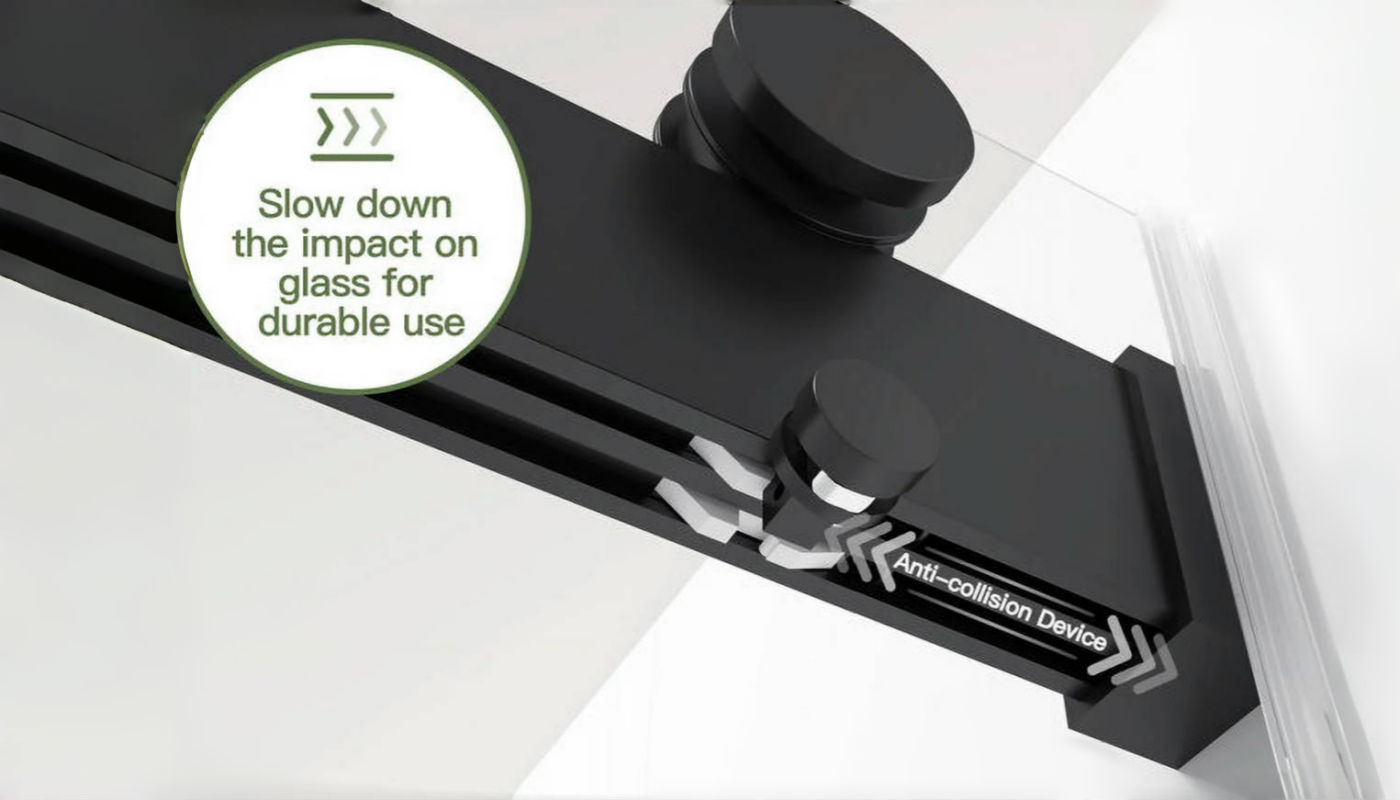

- Frameless Double Sliding Door with Soft-Closing System, tested for 200,000 cycles, ensuring 20 years of durability and enhanced safety.
- Features 3/8 inch (10 mm) certified double-sided easy-clean tempered glass, meeting United States standards.

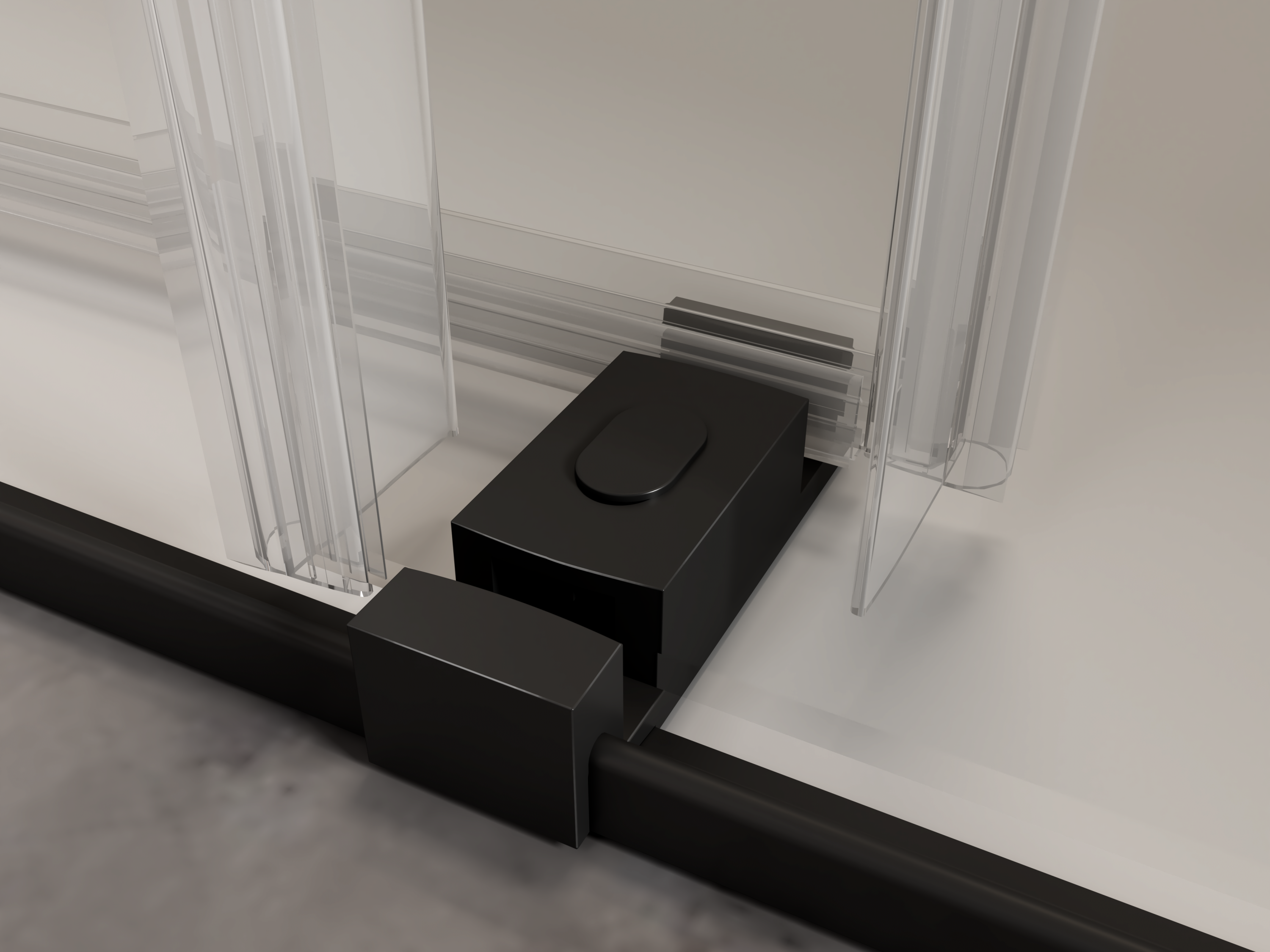

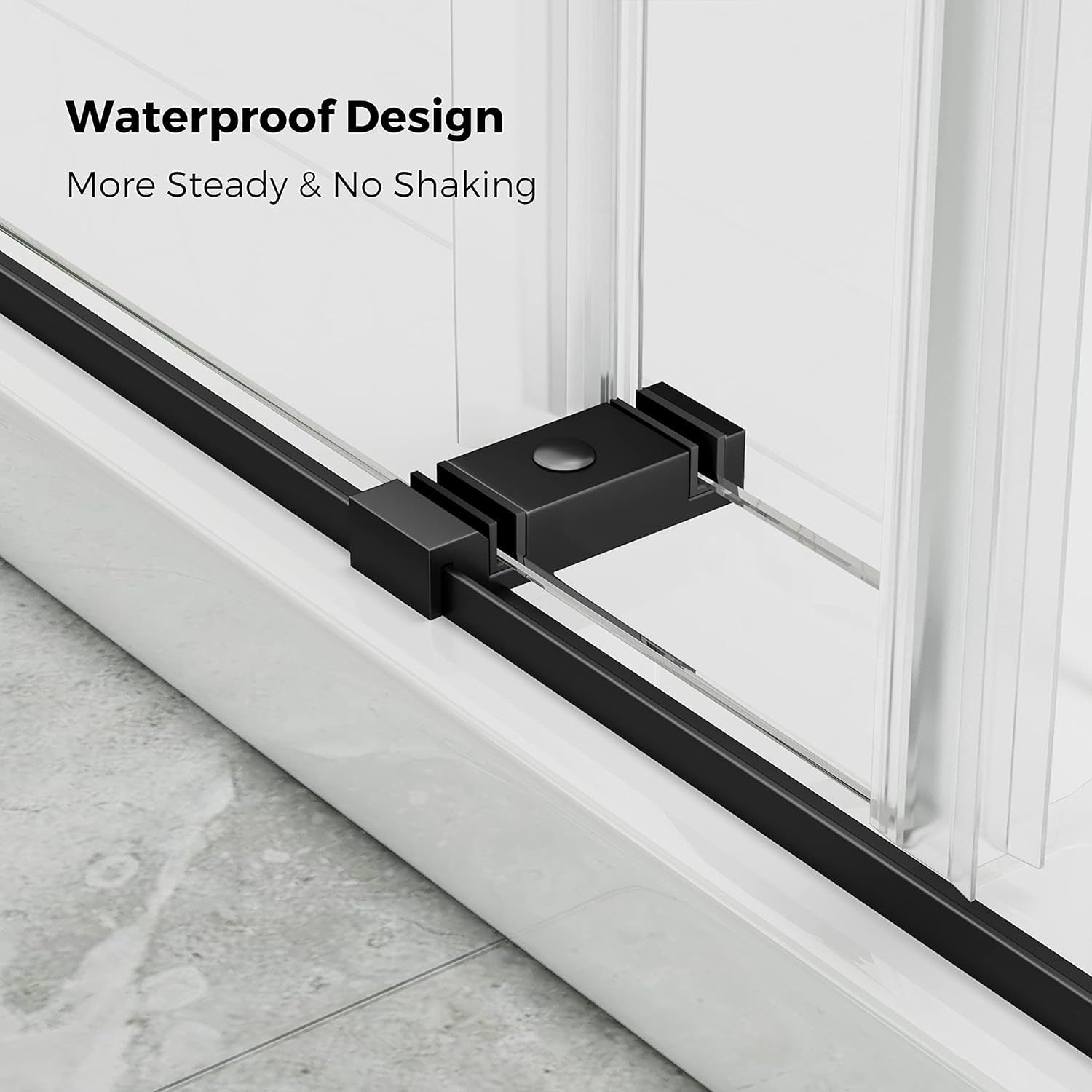

- DS01 Glass Guide Block width: 3 1/4 inches. It requires a minimum threshold of 3 inches, protruding inward by about 1/4 inch. Drilling a hole in the threshold is necessary for installation.
- Allows up to 1/4 inch offset on both sides of the wall, accommodating various wall conditions. Door seals and adjustment rollers can adapt to wall offsets, featuring off-center rollers.

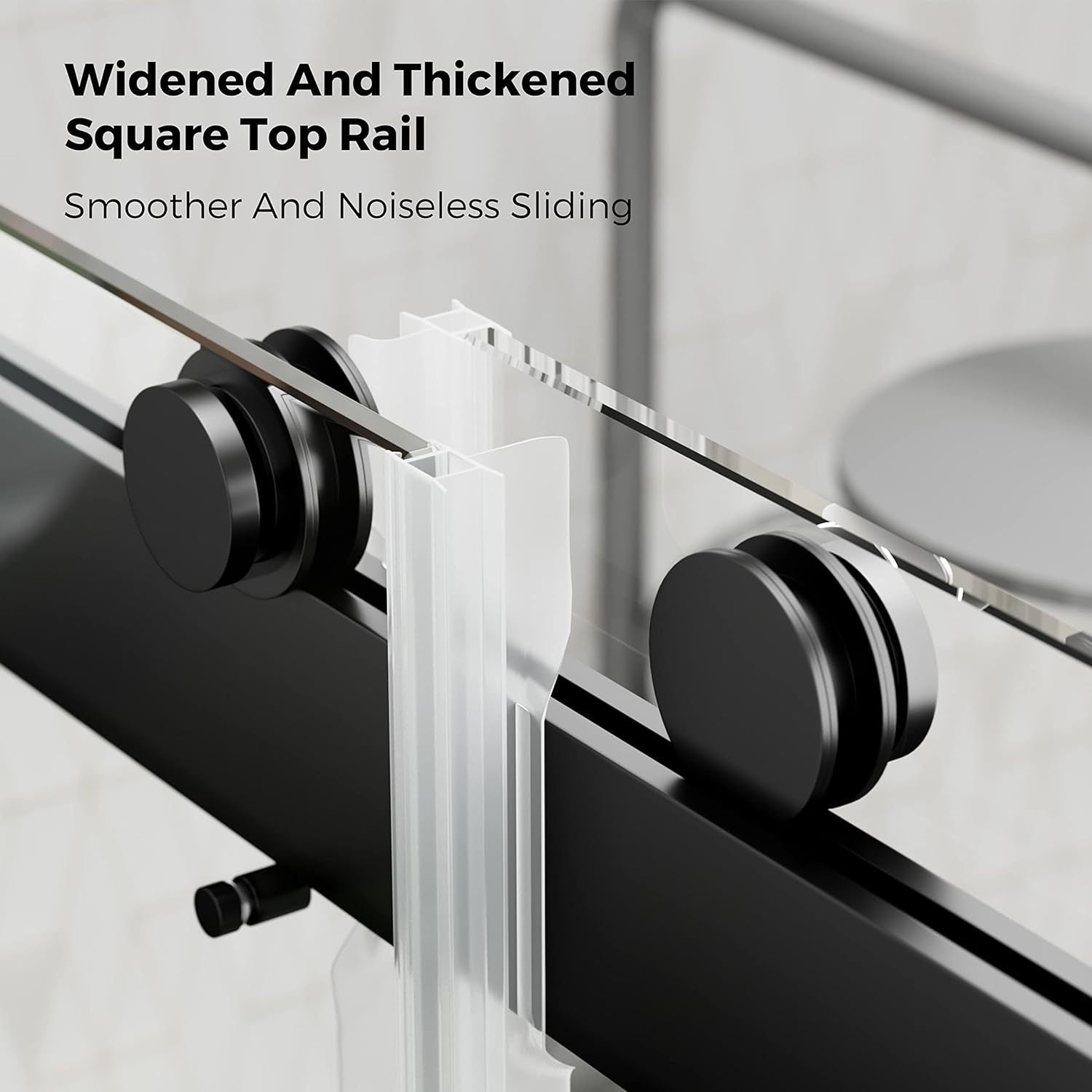

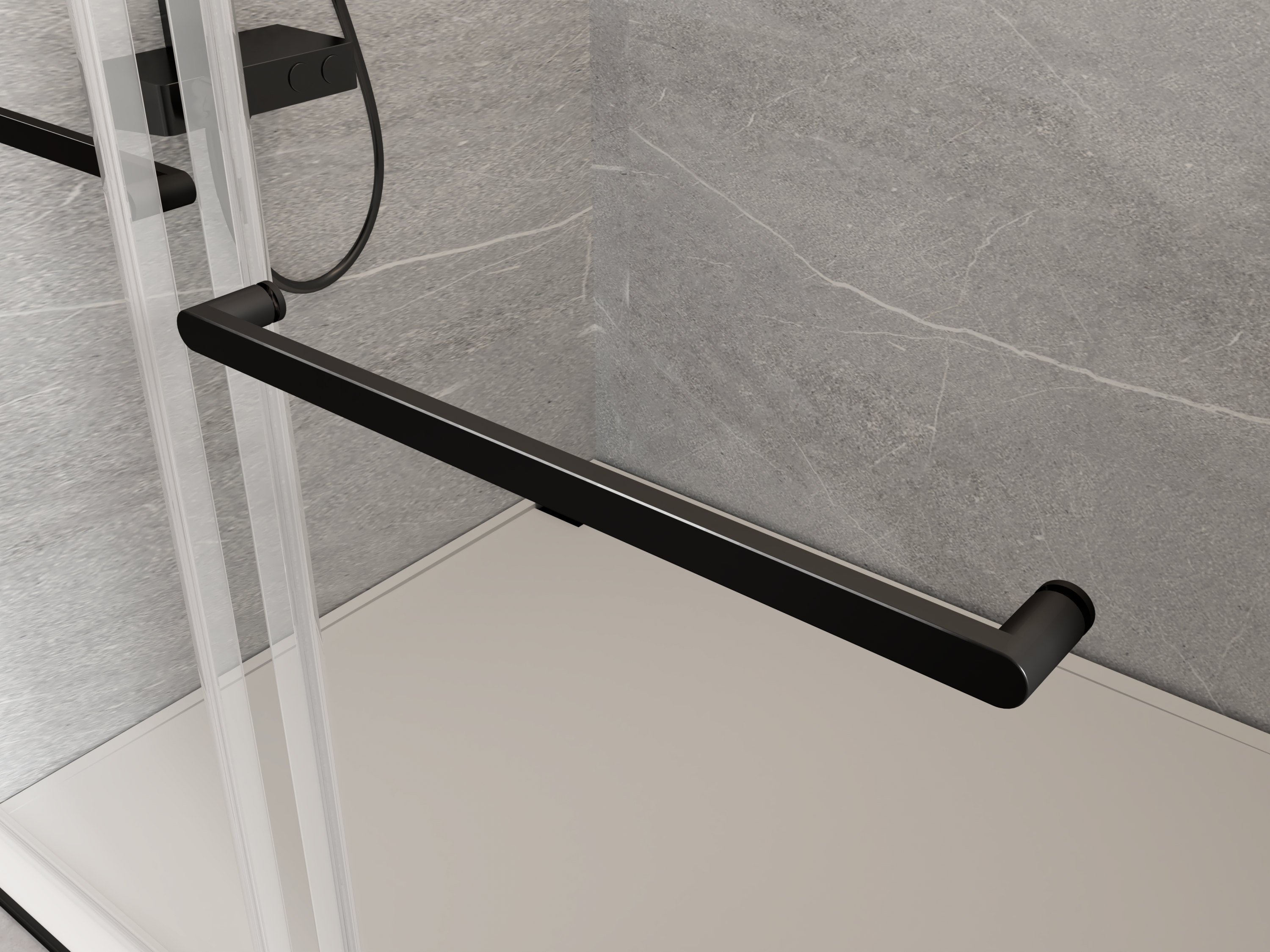

- High-quality 304-stainless steel hardware accessories. The guide rail material combines stainless steel and aluminum alloy. Includes 4 rollers and 2 towel bar handles (handle length: 20-2/3 inches). Shower base is not included.
Description
Model: 23D02-60MB

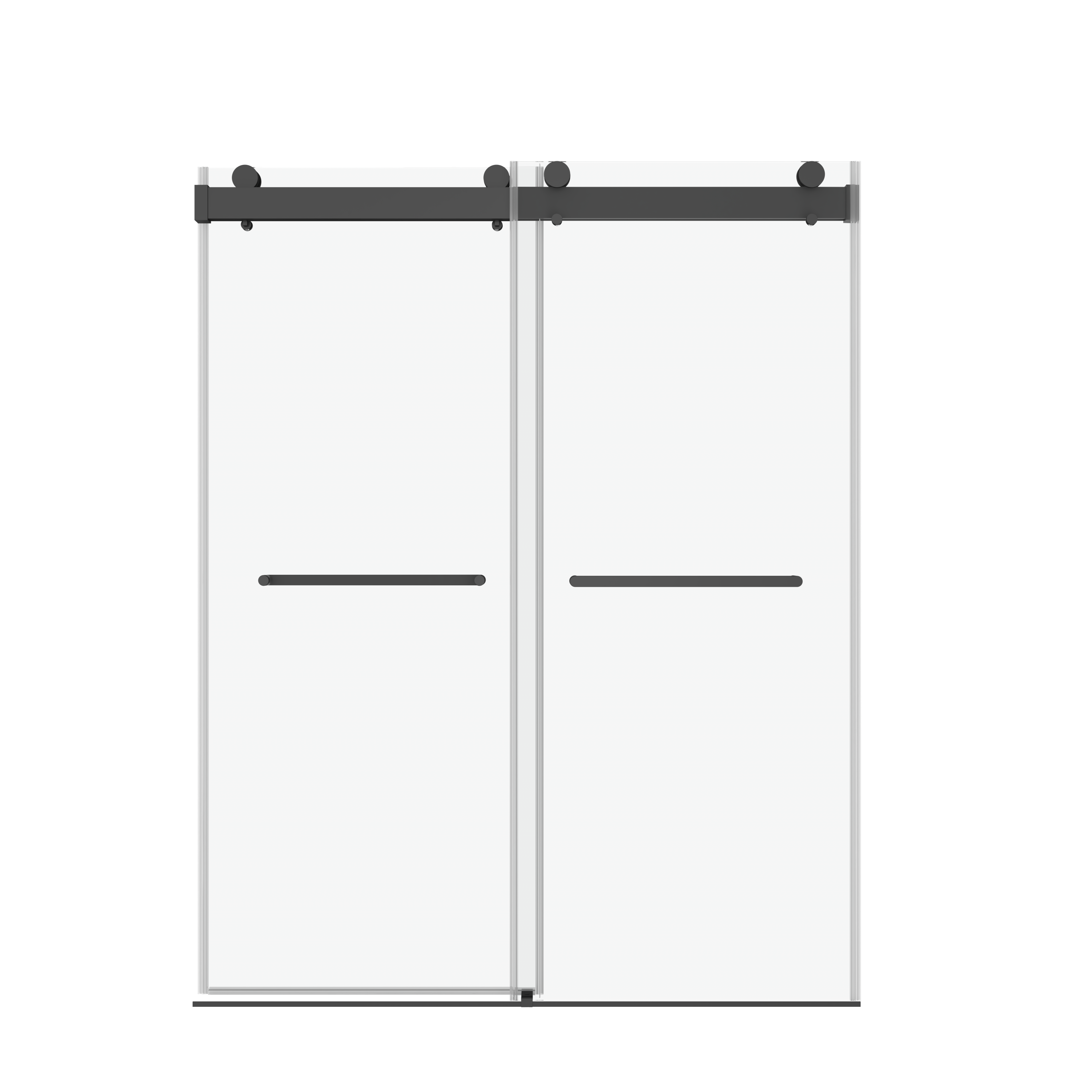

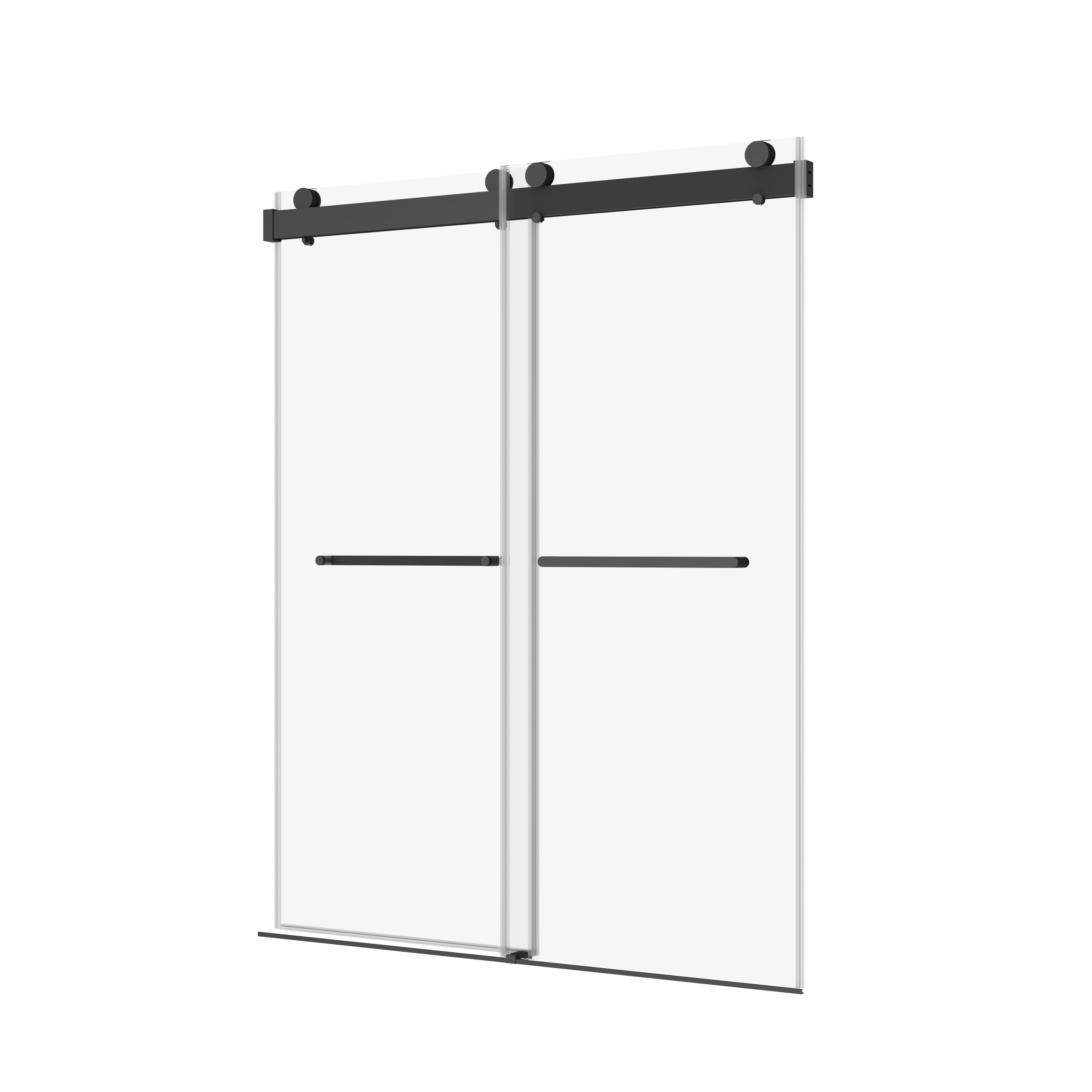

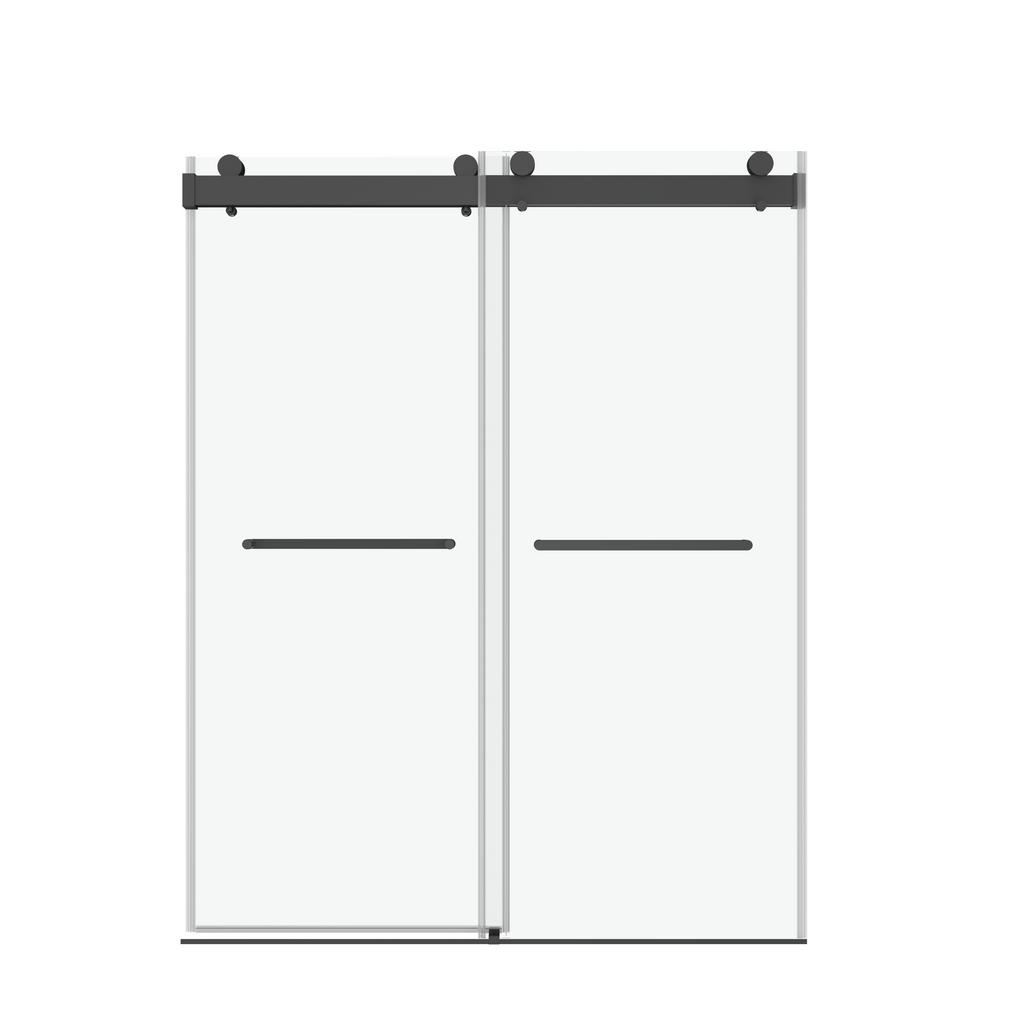

Type: Frameless Double Sliding Soft-closing Shower Door
Frame Finish: Matte Black
Handle Position: Left or Right

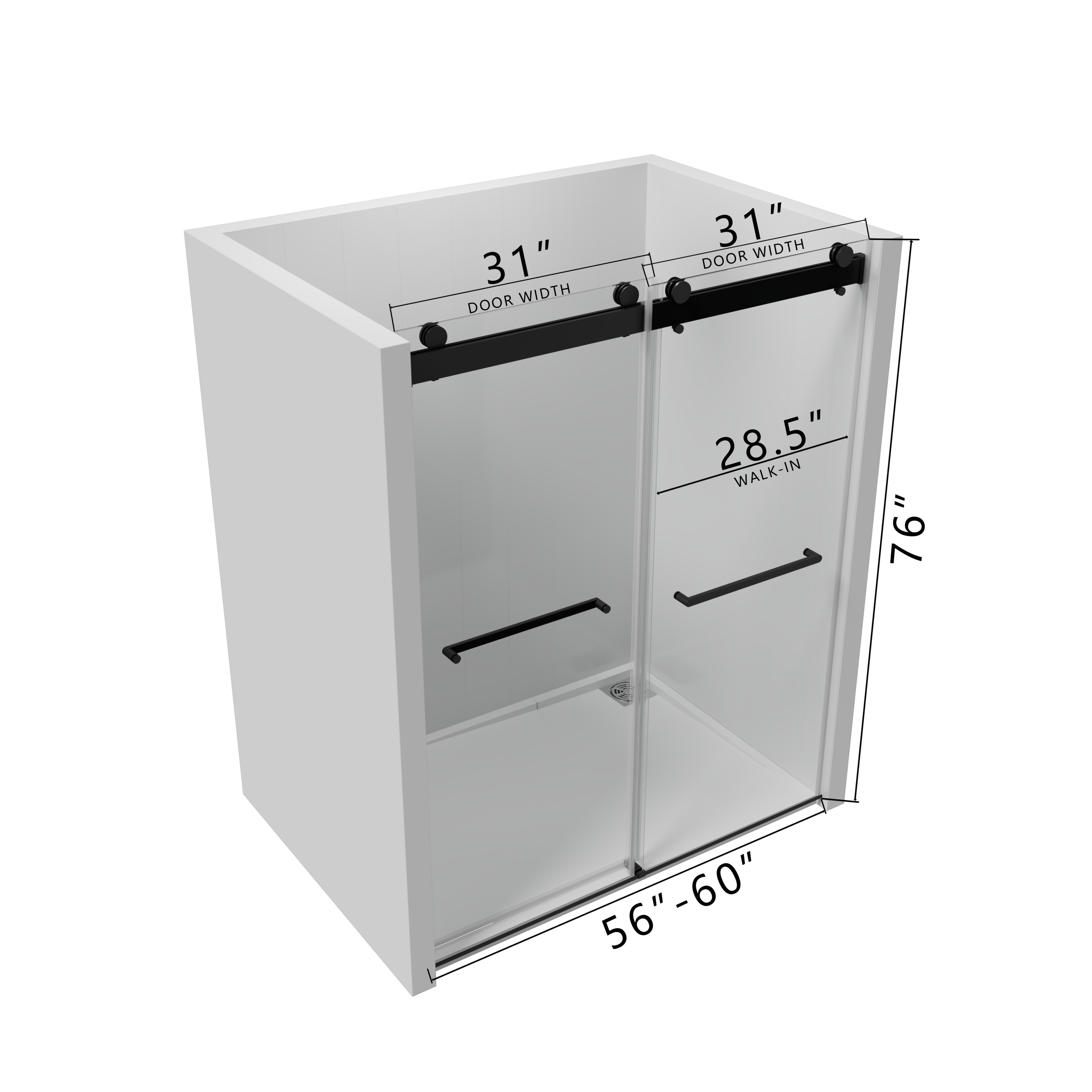

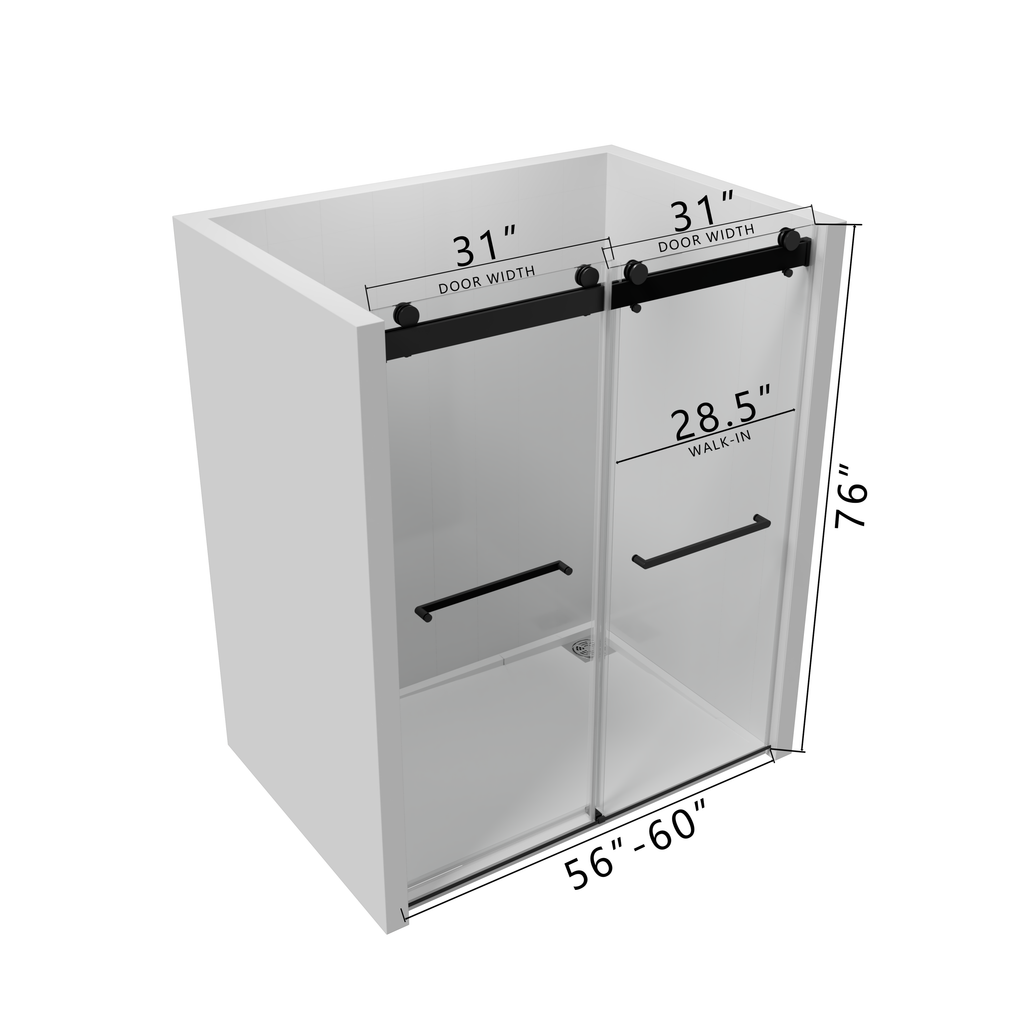

Installation Width: 56-60'
Installation Height: 76'
Standard Access Width: 28.5'
Door Width: 31'
Walk Through Opening Height: 70'

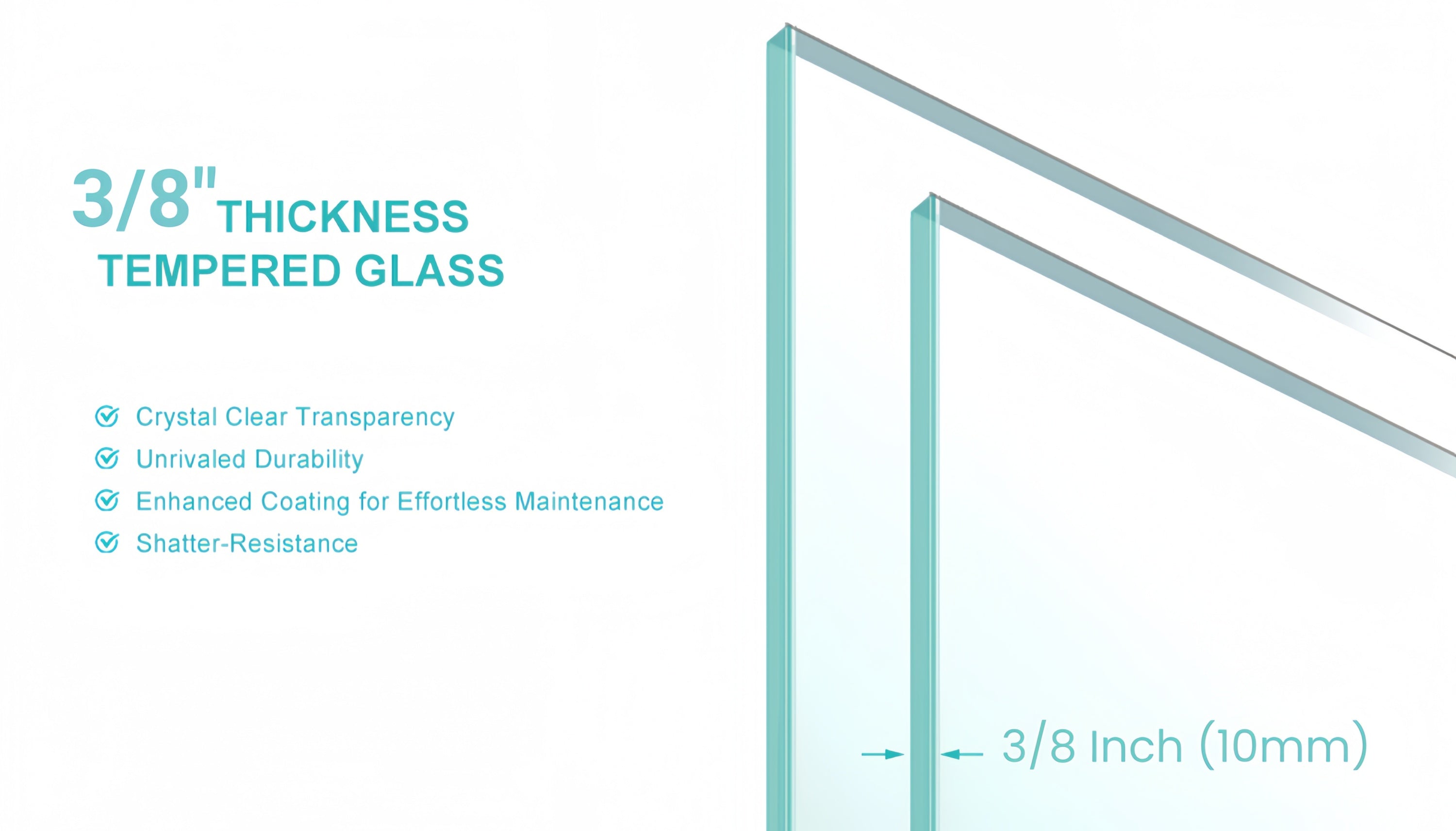

Glass Thickness: 3/8' (10mm)
Package Content:
1-3/8in Wall Anchor x 5
Wall Bracket x 2
Door Seal x 2
Fixed Panel Seal x 2
Sliding Door with Easy-cleaning Coating x 2
Anti-Splash Threshold x 1
Guide Block x 1
Roller x 4
Rail x 1
Anti-jumping Knob x 4
Towel Bar x 2
Lower Water Retaining Tape x 1
Buffer x 4
Wall Mounting x 2
Mounting Hardware x 1 Pack
